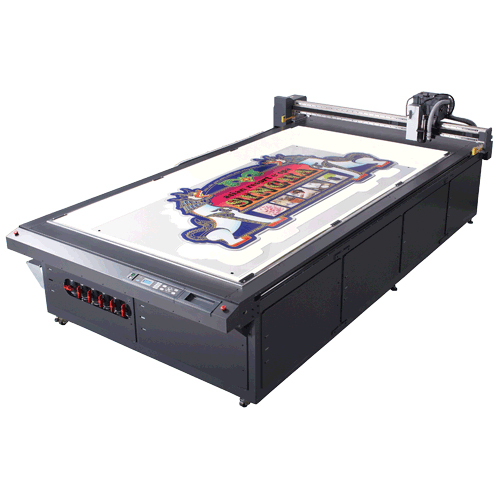

CF3

CF3

CF3

  • M head (router)
  • R1 head (reciprocating cutter)
  • TF2 head (tangential cutter)
  • The CF3 series incorporates innovative state-of-the-art-technology
  • Color photo sensor
  • Media is firmly held by vacuum system
  • Download Brochure
Categories: ,

Description

Equipped with a newly developed router head to cut up to 50mm (2”)* in thickness.
Cuts a wide range of materials with high accuracy

Supports both small and large size media up to 1.6m x 3.1m (63″ x 122″). Even difficult acrylic or aluminum composite panels can be cut with consistently high accuracy. User exchangeable cutting heads to suit a wide range of conditions widen your possibilities greatly.
※Your Mimaki dealer or Mimaki sales office will advise you of the suitability of specific materials that you would like to cut.

Specifications

CF3-1631 CF3-1610
Effective cut area 1,600 x 3,100mm
(63″ x 122″)		 1,600 x 1,000mm
(63″ x 39.3″)
Head drive method X.Y,Z.θ DC servo, special timing belt
Maximum speed 55cm (21.7″)/s
Maximum acceleration 0.5G
Static accuracy Repeatability ±0.15mm
Distance ±0.1mm,or ±0.1% whichever is greater
Origin repeatability ±0.15mm
Maximum cut depth Router : 50mm (1.96″), Tangential cutter : 10mm (0.39″),
Reciprocating cutter : 20mm (0.78″)
Maximum media thickness Router : 50mm (1.96″), Tangential cutter : 25mm (0.98″),
Reciprocating cutter : 20mm (0.78″)
Material clamp Vacuum system with blower
Command MGL-II c3 (MGL-IIc)
Interface USB, RS-232C
Main unit power supply 200V~240V, Single phase 50/60Hz, 6A or less
Dust collector power supply AC100V-120V, Single phase 50/60Hz, 15A or less
AC200V-240V, Single phase 50/60Hz, 10A or less
Blower power supply AC200V-240V, Single phase 50/60Hz, 30A or less per unit
Dimensions (WxDxH) 2,250 x 4,120 x 1,320mm
(88.6″ x 162.2″ x 52.0″)		 2,250 x 1,860 x 1,320mm
(88.6″ x 73.3″ x 52.0″)
  • Some of the sample images in this website are artificial renderings.
  • Specifications are subject to change without notice (for technical improvements, etc).
  • All trademarks or registered trademarks are the property of their respective owners.
  • When installation and operation training etc. of products are demanded on purchasing, an extra cost would be necessary except the products cost.

Model

CF3-1610M Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3″)
CF3-1610R1 Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3″)
CF3-1610TF2 Effective cutting area: 1,600 x 1,000 mm (63.0 x 39.3″)
CF3-1631M Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0″)
CF3-1631R1 Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0″)
CF3-1631TF2 Effective cutting area: 1,600 x 3,100 mm (63.0 x 122.0″)
